Choosing the right ring and mount decides whether your optic stays zeroed in the field. This guide covers the specs that matter when specifying precision optical sighting equipment for distribution or OEM import – the details that separate a mount that holds from one that walks under recoil.
Ring diameter and tube match
Match the ring inner diameter to your optic’s main tube (commonly 30 mm or 34 mm for modern optics, 25.4 mm / 1 inch for legacy). A mismatched ring scores the tube or loses clamp force. When in doubt, measure the tube, do not trust the label.
One-piece vs split rings
One-piece rings hold the tube with even, concentric clamping and are the default for precision use. Split rings are lighter and cheaper but need careful torque to avoid point-loading the tube. For repeatable zero, one-piece or a matched ring-and-base set wins.
Ring height and clearance
Ring height sets the sight picture and clears the objective bell from the barrel. Too low and the optic contacts the host; too high and you raise the cheek weld and add lever-arm stress. Match height to the objective diameter and the host’s comb height, not to a catalog average.
Material and torque
Aircraft-grade aluminium keeps weight down; steel adds durability for heavy-recoil hosts. Either way, use a torque wrench and the manufacturer’s spec – over-torqued rings crush tubes, under-torqued rings slip. A dab of approved thread locker on clamp screws is standard practice for field optics.
Quick-detach and alignment
If the program calls for QD, specify levers or throw-levers that return to zero after removal. Confirm ring alignment with a lapping bar or alignment pins before final assembly; a misaligned ring stresses the tube the moment it is tightened.

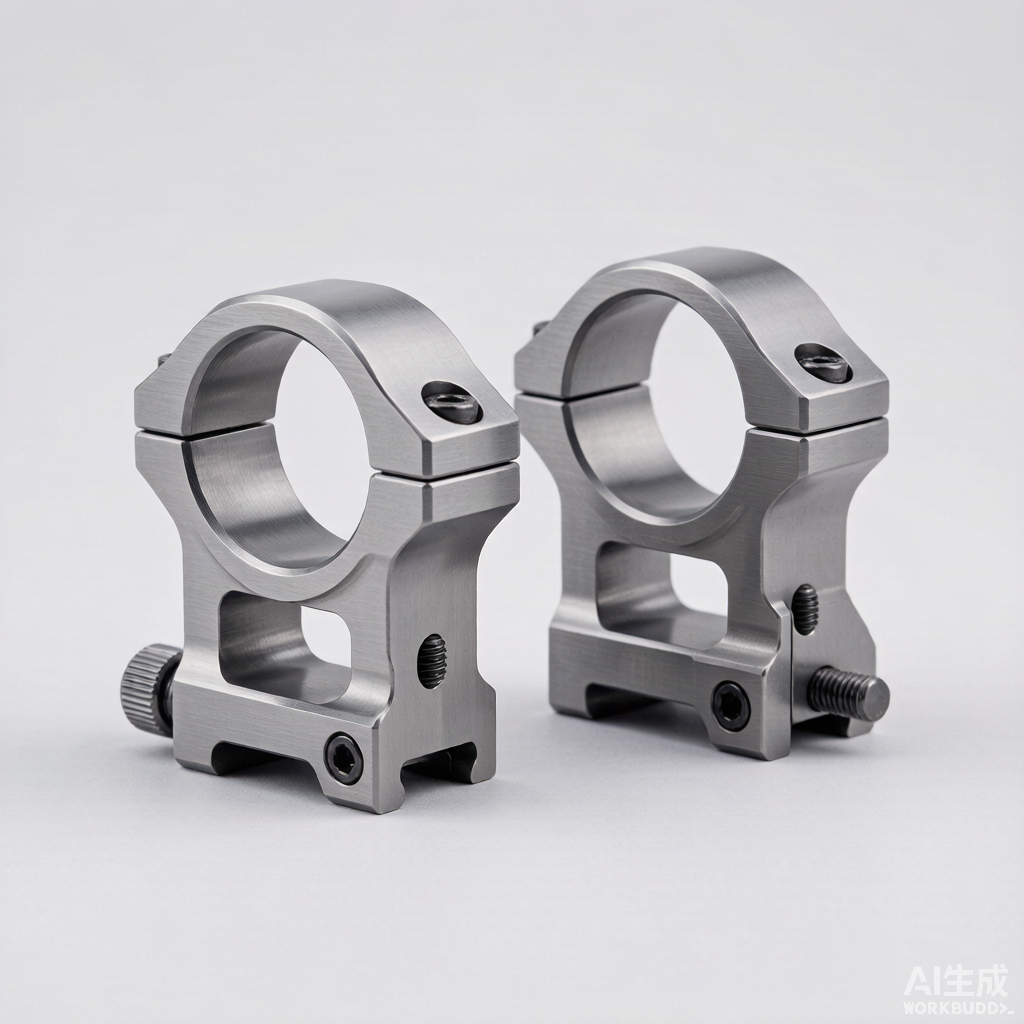

Specifying a full mounting line? KRS builds scope mounts and rings in 30/34/1-inch, one-piece and QD, across our optics, mounts & rings, rails, and stabilization families. Request a B2B quote for distributor pricing.
